Specialty Lampholders / Sockets

Robust and reliable for high temperature applications

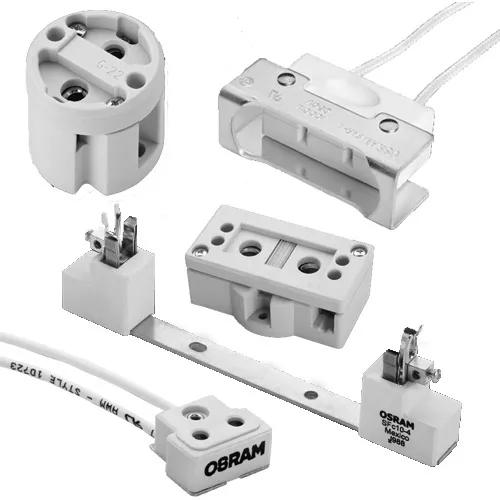

Specialty High Temperature Lampholders / Sockets

Key Features and Benefits

  • Ceramic housings designed specifically for high temperature halogen and metal halide applications
  • High quality contact materials for optimal mechanical and electrical properties
  • UL recognized and CE certified
  • Wide selection of socket types available in stock for both halogen and metal halide systems
  • Custom solutions available on a special order basis

Where to Buy

Request More Information

Product Details

Lampholders, also referred to as sockets, are key drivers of performance in any lighting system. OSRAM socket products are of the highest quality in order to provide a safe and reliable connection that maximizes the life and performance of the lamp and socket system.

OSRAM stocks a variety of sockets with the most frequently requested lead lengths, wire gauges and wire types, and these are available to order in smaller SKU quantities. There are also additional types available on a Made-to-Order basis for higher volume requests. To view our broader portfolio of products please refer to our complete Lampholder Catalog. You can also contact us with any custom OEM requests.

View our product offering (of types available in stock) in the expandable sections below:

Sockets for single end lamps

Single End

Select an item for more details from our eCatalog

Product
Number

Product
Description

Max Voltage

Pulse Rating

Max Operating Temp (°C)

SKU/Case Qty

69370G12 24IN/18GA/UL32396004kV2004 / 84
69371G22 NO LEADS100035kV3502 / 42
69372G38 NO LEADS100050kV3501 / 15
69367GY9.5 24IN/18GA/UL323910005kV2002 / 42
69786R1DL RIM MT 12IN/18GA/ULSFF1120-20020 / 100
69783S25 36IN/18GA/ULSF2250-30020 / 100
69785S4 NO LEADS250-30024 / 240
69784S48 48IN/18GA/ULSF2300-30020 / 100
69021TP120 12IN/18GA/ULSF1250-22520 / 100
69818TP22H 44IN/16GA/UL5359250-30020 / 100
69018TP22H CE 160CM/16GA/UL1659250-25010 / 40
69017TP22H CE 165CM/16GA/UL1659250-25010 / 40

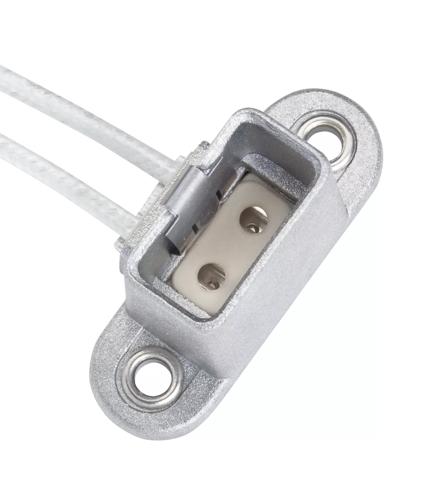

69006TP22XL 36IN/16GA/ULSF2250-20010 / 50
69010TP220XL 36IN/16GA/ULSF2250-25020 / 100
69020TP23H 12IN/16GA/UL5359250-20020 / 100
69022TP30 12IN/18GA/ULSFF1300-20020 / 100
69023TP61 28IN/18GA/ULSF1250-25025 / 125
Sockets for double end lamps

Double End

Select an item for more details from our eCatalog

Product Number

Product Description

Max Voltage (V)

Pulse Rating

Max Operating Temp (°C)

SKU/Case Qty

69012S26 36IN/16GA/ULSF2600-35020 / 100
69011S26A 18IN/16GA/ULSF2600-35020 / 100
69004SFc10-4100025kV2508 / 8
69098SFc10-4BB100025kV25012 / 12
Sockets for PAR Lamps

PAR

Select an item for more details from our eCatalog

Product Number

Product Description

Max Voltage (V)

Pulse Rating

Max Operating Temp (°C)

SKU/Case Qty

69013PAR-1 48IN/16GA/ULSF2250-30010 / 50
Applications for Specialty Lampholders / Sockets

Applications

Airfield

  • Halogen Fixtures

Entertainment

  • Halogen Fixtures
  • Metal Halide Fixtures

Medical & Scientific

  • Halogen Instrumentation

Industrial Processes

  • Halogen Equipment
