XBO® Xenon Discharge Lamps (>450W)

Intensely bright discharge lamps with high color quality

XBO® Xenon Short Arc Lamps (>450W)

Key Features and Benefits

  • ​High luminance (point source)
  • Color temperature approximately 6000K - simulates daylight
  • Continuous spectrum in the visible range
  • High color rendering > 95
  • High arc stability
  • DC operation
  • Hot restart

Where to Buy

Check Here

Request More Information

Contact Us

Product Details

OSRAM XBO Xenon Discharge Lamps (>450W) are intensely bright and offer excellent color rendering. Originally introduced in 1954 for cinema projection, OSRAMs innovation of XBO technology was awarded an OSCAR in 1984 for revolutionizing the film industry. Since then, the scope of applications for these high wattage XBO lamps have continued to broaden, and now they are used in spotlights for stage, studio and theatre applications, in searchlights and even in solar simulators. The most recent innovation has been the development of XBO lamps for digital cinema projection. Designed with shorter arc gaps, these lamps provide the higher level of point-source intensity needed for today's more demanding cinema projection systems.​

XBO® Digital Cinema Projection Lamps

XBO® Digital Cinema Projection Lamps

OSRAM Digital Cinema Projection lamps provide the intensity needed for the high demands of the digital cinema market. Lamps were designed specifically for each projection manufacturer, including Barco, Christie, NEC, and Sony.

BARCO Projectors:

Product
Number

Product
Description

Wattage

Warranty Hours

Service Warranty Lifetime1

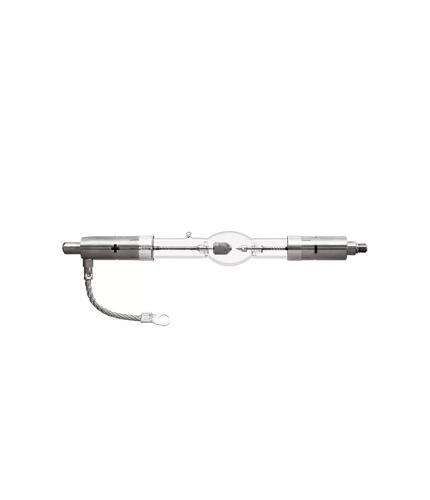

69596XBO 1200W/DHP120030003800
69840XBO 1600W/DHP160030003800
69150XBO 2000W/DHP200024003000
68884XBO 2000W/DHP L200033003500
67484XBO 2200W/DHP220015002000
69089XBO 2500W/DHP250017002000
69480XBO 3000W/DHP300015001900
69048XBO 3000W/DHP L300019002100
69462XBO 3000W/DHS300015002000
69481XBO 4000W/DHP400011001400
69049XBO 4000W/DHP L400013001500
69463XBO 4500W/DHP450010001300
69050XBO 4500W/DHP L450013001500
69476XBO 6000W/DHP6000650800
69053XBO 6000W/DHP L60008001000
69523XBO 6500W/DHP6500500750
54337XBO 6500W/DHP L6500700800

CHRISTIE Projectors:

Product Number

Product Description

Wattage

Warranty Hours*

Service Warranty Lifetime1

68891XBO 1400W/DTS140030003500
68892XBO 1600W/DTS160030003500

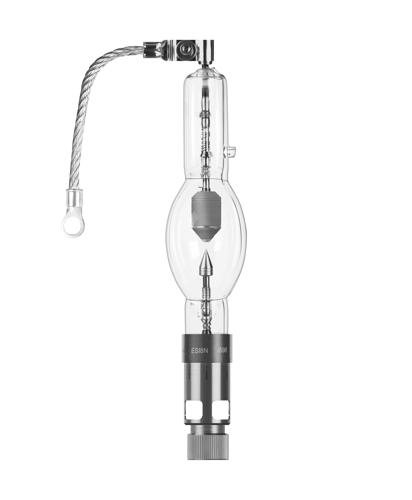

68880XBO 1800W/DTS180017502100
69155XBO 2000W/DTP200024003500
68882XBO 2000W/DTP L200033004000
68881XBO 2000W/DTS200011001300
68879XBO 2100W/DTS210010001500
68889XBO 2300W/DTS230010001200

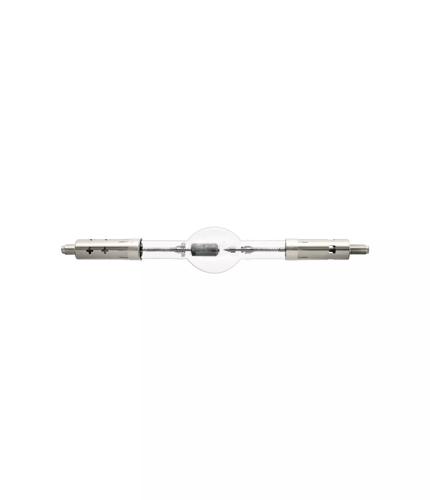

69154XBO 3000W/DTP300015002500
17106XBO 3000W/DTP L300019002800
69063XBO 3000W/DTS300010001300
69459XBO 4500W/DTP450010001300
69052XBO 4500W/DTP L450013001500
69460XBO 6000W/DTP6000600750
69055XBO 6000W/DTP L60008001100

*OSRAM does not recommend and will not warranty XBO lamps on “H” type power supplies because of excessive inrush current and high ripple current exceeding the OSRAM lamp specifications. With respect to other power supplies used in Christie digital projectors, they must meet OSRAM lamp specifications. Contact an OSRAM representative for additional details.

NEC Projectors:

Product Number

Product Description

Wattage

Warranty Hours

Service Warranty Lifetime1

69079XBO 1200W/HPN120030003500

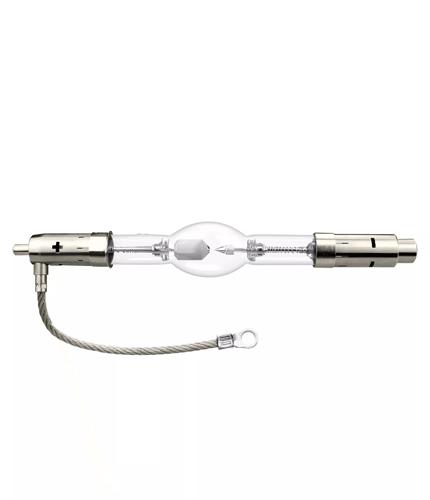

68885XBO 2000W/HPN L200030003500
69084XBO 3000W/HPN300015001900
68840XBO 3000W/HPN L300019002100
69060XBO 4000W/HPN4000650750
69085XBO 4000W/HPN L400011001500
69113XBO 4500W/HPN450010001300
69051XBO 4500W/HPN L450013001500
69123XBO 6000W/HPN6000650800
69054XBO 6000W/HPN L60008001100

SONY Projectors:

Product Number

Product Description

Wattage

Warranty Hours

Service Warranty Lifetime1

68883XBO 2000W/HPS L200030003500

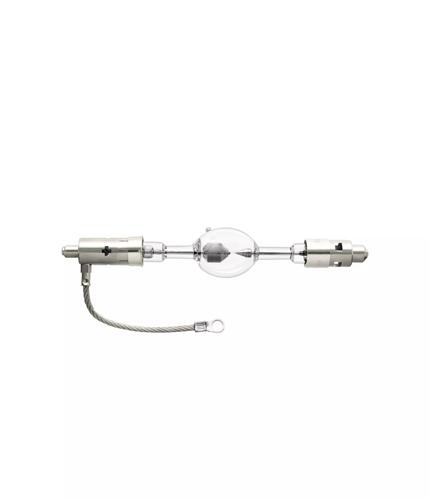

69487XBO 3000W/HPS300010001300
60009XBO 4200W/HPS4200700850
60008XBO 4200W/HPS L420010001200

1Service Warranty Lifetime: Warranted hours in the event of a lamp rupture. This warranty covers the cost of damage to the optical and mechanical parts of the projector that is caused solely due to a defect in the lamp’s material or workmanship. For details, see our latest revision of OSRAM XBO Xenon Short Arc Lamp Limited Warranty.

XBO® Traditional and Xtreme Life (XL) Lamps

XBO® Traditional and Xtreme Life (XL) Lamps

Traditional and Xtreme life XBO lamps are used in a variety of applications including 35mm film projection, spotlights for stage, studio, and theatre, as well as searchlight applications.

Traditional:

Product Number

Product Description

Wattage

Voltage

Warranty Lifetime

69257XBO 500W/H OFR500172000
69263XBO 1000W/HS OFR1000192000
69264XBO 1000W/HSC OFR1000192000
69265XBO 1000W/HTP OFR1000212400
69270XBO 2000W/HS OFR2000242400
69248XBO 2500W OFR2500292000
69294XBO 4200W/CA OFR4200271000

Xtreme Life:

Product Number

Product Description

Wattage

Voltage

Warranty Lifetime

69524XBO 1600W/HS XL OFR1600232500
69525XBO 1600W/HSC XL OFR1600232500
69477XBO 2000W/H XL OFR2000283500
69495XBO 2000W/HTP XL OFR2000273500
69507XBO 2500W/HS XL OFR2500282200
69478XBO 3000W/H XL OFR3000292200
69479XBO 3000W/HS XL OFR3000292200
69152XBO 3000W/HTP XL OFR3000292200
69474XBO 4000W/HS XL OFR4000281500
69151XBO 4000W/HTP XL OFR4000281500
69542XBO 4500W/HS XL OFR4500321400
69527XBO 7000W/HS XL OFR750042650

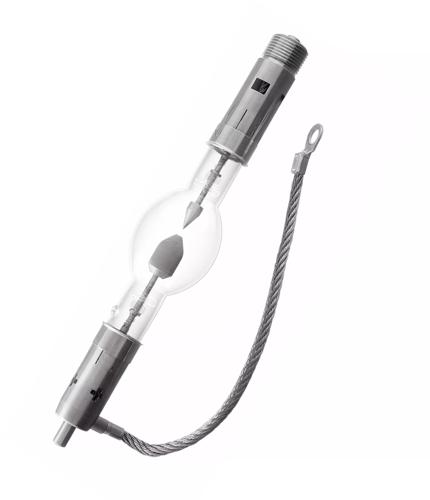

XSTAGE® Xenon Short Arc Lamps

XSTAGE® Xenon Short Arc Lamps

OSRAM XSTAGE lamps are XBO Xenon Discharge lamps with an enhanced base design that makes then ideal for the rigors of searchlight applications.

Product Number

Product Description

Wattage

Voltage

Lifetime

69482XSTAGE 2000W200023650
69483XSTAGE 3000W300030650
69484XSTAGE 4000W400030650
69485XSTAGE 7000W700040650
Applications for XBO >450W

Applications

Cinema Projection

  • Digital
  • Film

Entertainment

  • Spotlights
  • Searchlights

​Industrial

  • Solar Simulation
