​XBO® Xenon Short Arc Discharge Lamps (≤450W)

Intense light with high color quality

XBO Xenon Short Arc Lamps

Key Features and Benefits

  • High luminance / radiance with intense point source
  • Broad, continuous spectral distribution
  • High color rendering > 95
  • High arc stability
  • DC operation

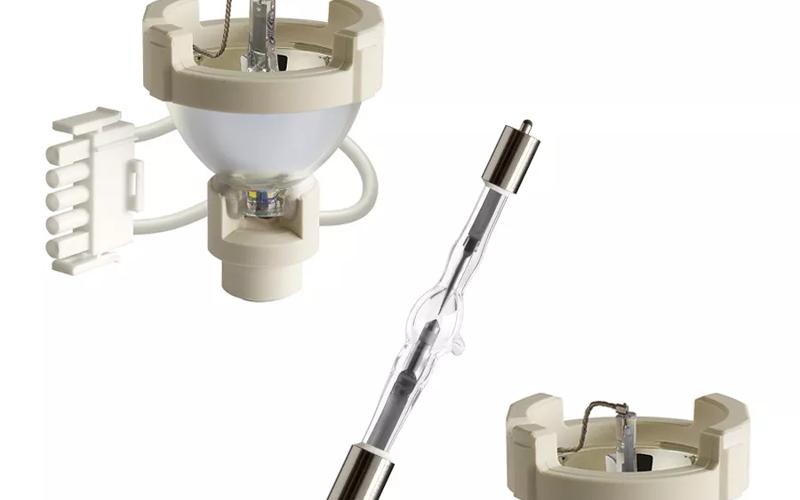

  • Available in double end, reflector (XBO® R) and ceramic xenon (XBO® C) designs

Where to Buy

Check Here

Request More Information

Contact Us

Product Details

OSRAM XBO Xenon Short Arc Discharge Lamps (≤450W) are intense point sources that provide a broad, continuous spectrum and have a near perfect color rendering in the visible range with an index greater than 95. This makes them an ideal choice for fiber illumunation devices for Medical, Scientific, and even Industrial areas. In particular, surgical devices benefit from the accurate color rendering and intense beam of the XBO light source. OSRAM has been producing reliable, high quality XBO lamps for over 60 years.​

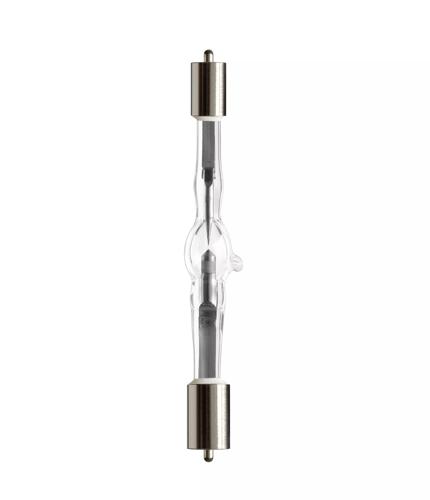

XBO® ≤450W Double End

XBO® ≤450W Double End

Product
Number

Product
Description

Wattage

Voltage

Avg. Lifetime

69231XBO 75W / 27514400
69232XBO 75W / 2 OFR7514400
69233XBO 100W OFR10014500
69234XBO 150W / 1150201200
69238XBO 150W / 4150201200
69237XBO 150W / CR OFR150181200*
3000**
69241XBO 450W450172000
69242XBO 450W / 145017800
69243XBO 450W / 2 OFR450172000
69244XBO 450W / 4450172000

*For horizontal burning position

**For vertical burning position

XBO® ≤450W with Reflector

XBO® ≤450W with Reflector (XBO® R)

> Select an item for more details from our e-catalog

Product Number

Product Description

Wattage

Voltage

Avg. Life

69197XBO R 100W / 45 OFR10014500
69191XBO R 100W / 45C OFR10014500
69190XBO R 101W / 45C OFR10014500
69186XBO R 180W / 45 OFR18014500
69183XBO R 180W / 45C OFR18014500
69184XBO R 181W / 45C OFR18014500
69167XBO R 300W / 60C OFR300175002

1Operation time after which the aperture lumens can decrease to 50% of initial value with switching cycle of 1 hr on and 1 hr off.

2Operation time after which the aperture lumens can decrease to 50% of initial value with switching cycle of 3 hr on and 20 min off.

XBO® C ≤450W

XBO® ≤450W Ceramic Xenon (XBO® C)

OSRAM XBO® C lamps are ceramic xenon short-arc lamps that combine high brightness and superb color clarity with a rugged and easy to use design.

View our lamp to equipment cross reference brochure for more information on where our lamps can be used:

Equipment Cross Reference

> Select an item for more details from our e-catalog

Product Number

Product Description

Wattage

Voltage

Avg. Life (hrs)1 2

55202XBO C 175W / BF17512.51000
55203XBO C 300W / BF300141000
55204XBO C 300W / MAJ1817300141000
55207XBO C 300W / EPKI30013500
55205XBO C 300W / X70003300141000
55206XBO C 300W / X80004300141000

1 Up to 50% of initial output

2 Warranty is up to 50% of the Average Rated Life

3 Exclusive only to LuxteL assembly CL1571 / X7000

4 Exclusive only to LuxteL assembly CL1567 / X8000

Applications for XBO ≤450W

Applications

Medical & Scientific

  • Endoscopy
  • Microscopy
  • Surgical Headlamps
  • Fiber Illumination

Industrial

  • Solar Simulation
  • Fiber Illumination
  • Imaging & scanning
  • Microscopy
