HTI® Metal Halide Lamps

Highly effective bright light effects

HTI Product Family Image

Key Features and Benefits

  • ​Robust design with eXtreme Seal (XS) technology on some types, allowing up to 450°C at the pinch seal
  • Consistent lumen output over the life of the lamp
  • Higher luminous efficacy than conventional HID lamps provides higher fixture efficiency
  • SHARXS® lamp family provides consistent lengths and bases for simplified fixture designs
  • Lok-It!® lamp family provides a special base design that allows for safe and easy, "one touch" lamp replacement from the back of the fixture

Where to Buy

Check Here

Request More Information

Contact Us

Product Details

OSRAM HTI lamps are short arc lamps that provide bright light with high efficiency. They are available in single end, reflector, and double end designs.

The SHARXS HTI lamps are special double end lamps that include eXtreme Seal (XS) technology allowing temperatures up to 450°C at the pinch seal. SHARXS lamps are also standardized in both length and base type. Standard SHARXS lamps have a maximum overall length of 136mm and utilize the SFc10-4 base. The BABY SHARXS lamps utilize the same base, but are standardized at a 93mm overall length. The MAXI SHARXS lamps have an overall length of 220mm and utilize the SFc15.5 base.
View our SHARXS HTI product video!

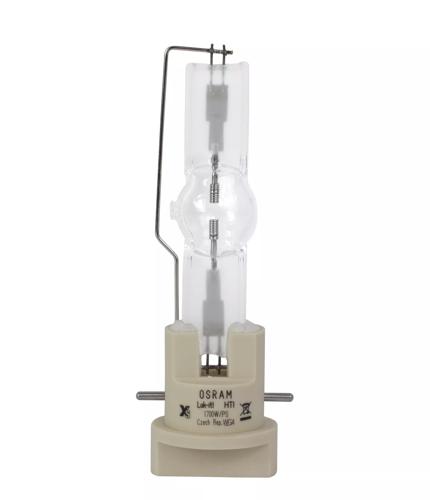

The Lok-It! HTI Lamp family also offers short arc technology providing highly efficient, bright light effects, but is designed with a special "one touch" base allowing for safe and easy lamp installations from the back of the fixture.

View our product offering in the expandable sections below:

HTI Single End and Lok-it! Lamps

HTI® Single End and Lok-It®

Product
Number

Product
Description

Wattage

Voltage

Color Temp

CRI

Avg. Life

Base

69000HTI S 35/1235855000903000P32d-2
54078HTI 150W15095650070750GY9.5
54079HTI 152W150955000902000GY9.5
54141HTI 1200W/SE XS120095540090750GY22
Lok-it! Lamps

*See our full line of HTI Lok-it! Lamps (including HTI, HSD, and Halogen).

HTI Reflector Lamps

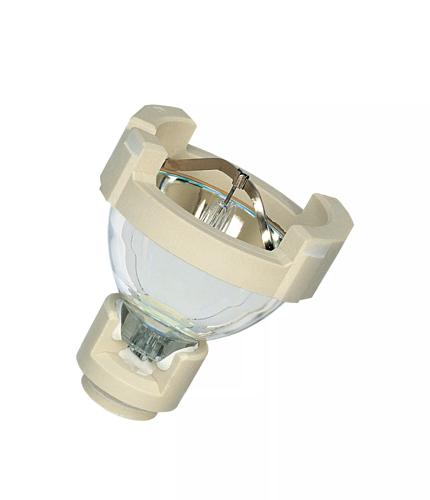

HTI® Reflector

Product Number

Product Description

Wattage

Voltage

Color Temp

CRI

Avg. Life

Base

54081HTI 250W/3225045560070250P20
54089HTI 250W/32C25045560070250P20
54083HTI 400W/2440055560070250P20
HTI Double End and SharXS Lamps

HTI® Double End and SHARXS®

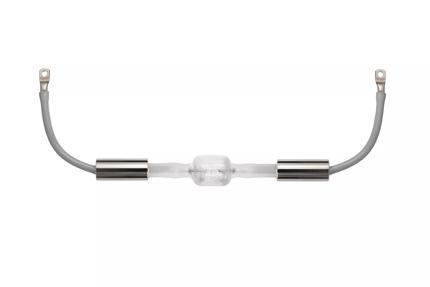

HTI Double End

Product Number

Product Description

Wattage

Voltage

Color Temp

CRI

Avg. Life

Base

54133HTI 4000W/DE4000105630090500S25.5

HTI Double End - BABY SHARXS®

Product Number

Product Description

Wattage

Voltage

Color Temp

CRI

Avg. Life

Base

54297HTI 250W/D5/80 BABY SHARXS250758000853000SFc10-4
54298HTI 300W/D5/57 BABY SHARXS300755700803000SFc10-4
54299HTI 300W/D5/65 BABY SHARXS30095650085750SFc10-4
54359HTI 575W/D5/56 BABY SHARXS57593560085500SFc10-4

HTI Double End - SHARXS®

Product Number

Product Description

Wattage

Voltage

Color Temp

CRI

Avg. Life

Base*

54241HTI 400W/D3/75 SHARXS400507500801000SFc10-4
54282HTI 700W/D4/60 SHARXS70070600080750SFc10-4
54242HTI 700W/D4/75 SHARXS70070750080750SFc10-4
54268HTI 1200W/D7/60 SHARXS120095600090750SFc10-4
54269HTI 1200W/D7/75 SHARXS120095750080750SFc10-4
54319HTI 1500W/D7/60 SHARXS1500110750080750SFc10-4

*OSRAM also offers the high quality SFc10-4 socket for the HTI SHARXS lamps.

HTI Double End - MAXI SHARXS®

Product Number

Product Description

Wattage

Voltage

Color Temp

CRI

Avg. Life

Base*

54328HTI 2000W/D10/60 MAXI SHARXS2000105600085750SFc15.5
Entertainment Applications

Applications

Entertainment

  • Concert Lighting
  • Club & Disco
  • Stage & Theatre
  • Studio, TV & Film
  • Architecture & Architainment
