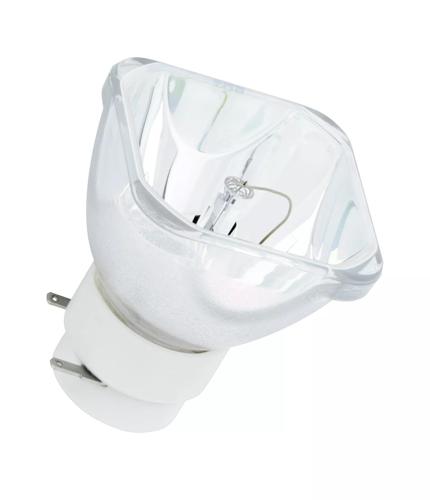

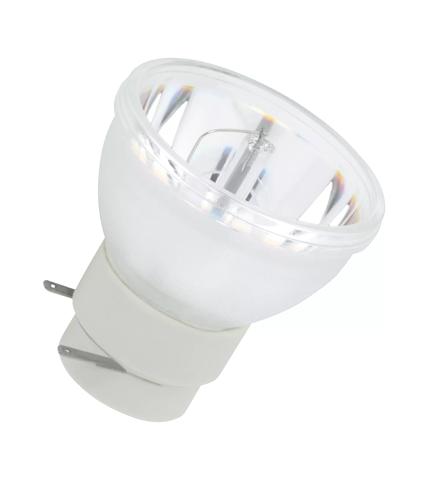

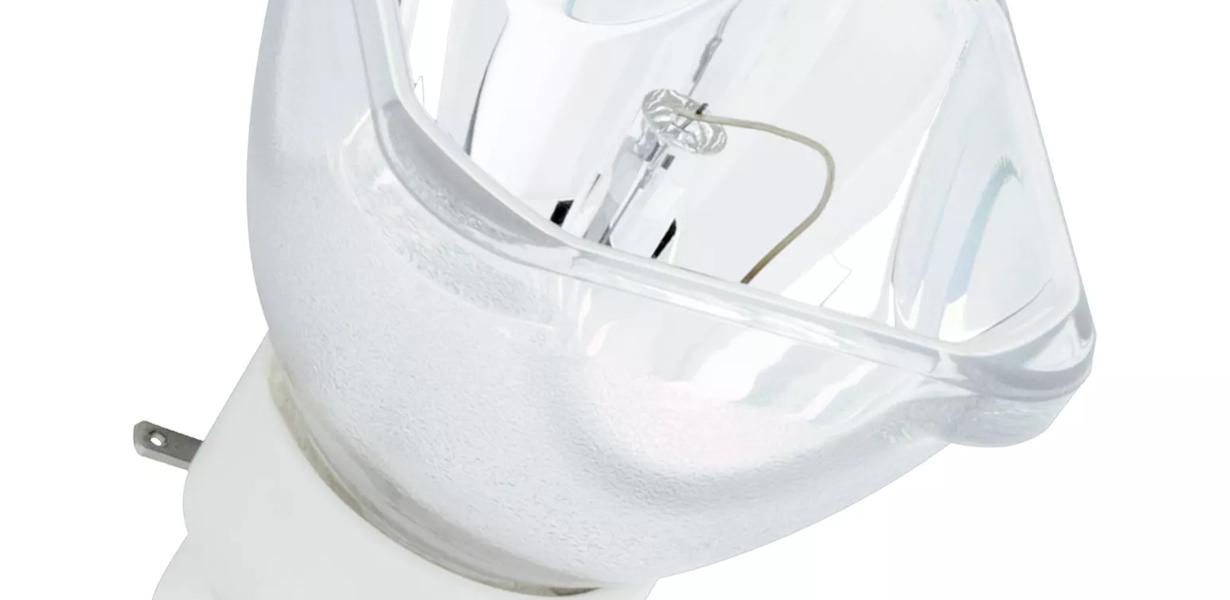

​P-VIP® Projection Lamps

Intensely bright discharge lamps for high quality projection devices

Geniune OSRAM P-VIP Lamps

Key Features and Benefits

  • Superior light output for the best in image quality
  • Uniform light distribution to screen
  • Long lamp life provides best cost value over time
  • Reliable quality that is backed by warranty
  • OSRAM original P-VIP lamps are specifically designed for optimal performance within each make and model projection device
  • OSRAM works in close collaboration with top original equipment manufacturers to offer the best system performance

Where to Buy

Check Here

Request More Information

Contact Us

Product Details

OSRAM offers a broad range of P-VIP projection lamps used for Video/Data Projection, Rear Projection Televisions, and other projection applications. These high pressure mercury discharge lamps provide a dense multi-spectrum output that is essential to projection devices. Due to OSRAM's innovative expertise, these high luminance lamps are coupled with long lifetimes and performance reliability ensuring complete satisfaction to the end user. Using OSRAM original lamps as designed and specified by the equipment manufacturers is critical to the optimal performance characteristics of the projection devices.

Availability of OSRAM Original P-VIP Lamps:

P-VIP lamps have to be adapted (caged) for their application inside the projector. Therefore OSRAM does not supply replacement lamps directly. Replacement lamps can be obtained via the OEM or through OSRAM's master distributor and its subsequent distributor partners.

P-VIP for Front Projection

OSRAM Original P-VIP® Front Projection Lamps



Max Power

Arc Gap

Reflector Type

69149PVIP 150/1.0 E18a 601501.0E18
69574PVIP 165/1.0 E17.6a 601651.0E17.6
69066PVIP 170/1.0 E50a 601701.0E50
69114PVIP 170/1.0 E54a 601701.0E54
69804PVIP 180/0.8 E20.8a 601800.8E20.8
69851PVIP 180/1.0 E20.6a 601801.0E20.6
69802PVIP 200/0.8 E20.8a 602000.8E20.8
69815PVIP 200/1.0 cE19.5a 502001.0E19.5
69789PVIP 200/1.0 E20.6a2001.0E20.6
69067PVIP 200/1.0 E50a 602001.0E50
69115PVIP 200/1.0 E54a2001.0E54
69812PVIP 220/1.0 E20.8a 602201.0E20.8
69793PVIP 230/0.8 E20.8 602300.8E20.8
69801PVIP 180-230/1.0 cE19.5 502301.0E19.5
69790PVIP 230/1.0 E20.6a 602301.0E20.6
69083PVIP 230/1.0 E50a 502301.0E50
69597PVIP 250/1.3 cE21.5a 502501.3E21.5
69378PVIP 250/1.3 E21.8v 85V 502501.3E21.8
69533PVIP 250/1.3 P22a 502501.3P22
69611PVIP 260/1.0 E20.6a 602601.0E20.6
69811PVIP 280/0.9 E20.6 602800.9E20.6
69806PVIP 280/0.9 E20.8a 602800.9E20.8
69805PVIP 280/0.9 E20.9a 602800.9E20.9
69791PVIP 280/1.0 E20.6a2801.0E20.6
69112PVIP 245-300/1.1 E21.7a 503001.1E21.7
69599PVIP 300/1.3 E21.6a3001.3E21.6
69508PVIP 300/1.3 E21.8a3001.3E21.8
69509PVIP 300/1.3 P22.5 503001.3P22.5
69555PVIP 330/1.0 E20.9a 603301.0E20.9
69594PVIP 330/1.3 cP22.5a 503301.3P22.5
69111PVIP 264-330/1.3 E21.7a 503301.3E21.7
69792PVIP 350/1.3 E21.8a 503501.3E21.8
P-VIP for Rear Projection TV

OSRAM Original P-VIP® Rear Projection TV Lamps

Product Number

Product Description

Max Power

Arc Gap

Reflector Type

69506PVIP 100-120/1.0 E19.8a 501201.0E19.8
69377PVIP 100-120/1.0 E22h 85V 501201.0E22
69561PVIP 100-120/1.0 E22ha 501201.0E22
69560PVIP 100-120/1.0 E23ha 501201.0E23
69375PVIP 120/1.0 E23h 85V 501201.0E23
69546PVIP 100-120/1.0 P20a 601201.0P20
69548PVIP 100-120/1.0 P22ha 501201.0P22
69393PVIP 100-120/1.3 E23h 501201.3E23
69559PVIP 100-120/1.3 E23ha 501201.3E23
69570PVIP 100-120/1.3 P23a 501201.3P23
69534PVIP 120-132/1.0 E22ha 501321.0E22
69441PVIP 120-132/1.0 P22ha 501321.0P22
69490PVIP 132-150/1.0 E22ha 501501.0E22
69382PVIP 132-150/1.0 E23h 85V 501501.0E23
69082PVIP 132-150/1.0 P22ha 501501.0P22
69440PVIP 150-180/1.0 E22h 501801.0E22
69788PVIP 150-180/1.0 E22ra 501801.0E22
Applications for P-VIP


Video/Data Projection

  • Offices
  • Schools
  • Hospitality

Rear Projection

  • Home Theater
