​PURITEC® HNS® Germicidal Lamps

Effective, chemical-free purification for air, water, and surfaces

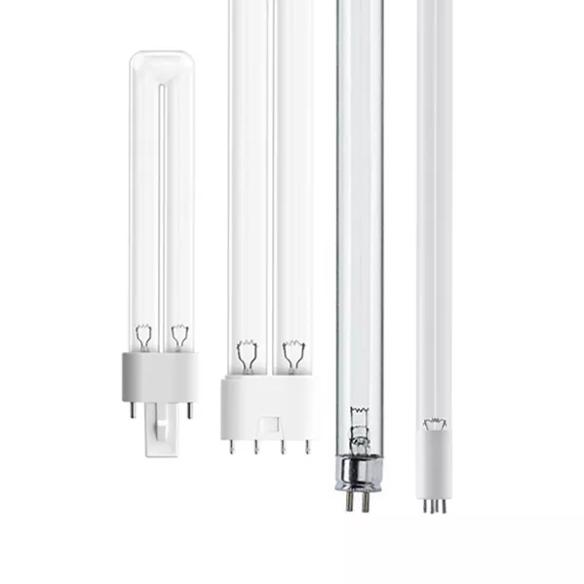

PURITEC HNS UV-C Germicidal Lamps

Key Features and Benefits

  • Effective and environment-friendly disinfection without chemicals
  • High UV-C radiance at 254 nm
  • Low mercury content
  • Long lifetime due to special coating
  • Ozone-free​

Where to Buy

Check Here

Request More Information

Contact Us

Product Details

The OSRAM PURITEC HNS germicidal lamps provide highly effective UV-C irradiance at 254nm, which provides the needed effect for purification, without the use of toxic chemicals. These lamps are ideal for both air and water purification systems. PURITEC HNS lamps are reliable and efficient sources with long service life in excess of 8,000 hours. In addition, the special outer glass tube absorbs the lower wavelengths, suppressing the formation of ozone and ensuring environmentally friendly sterilization.

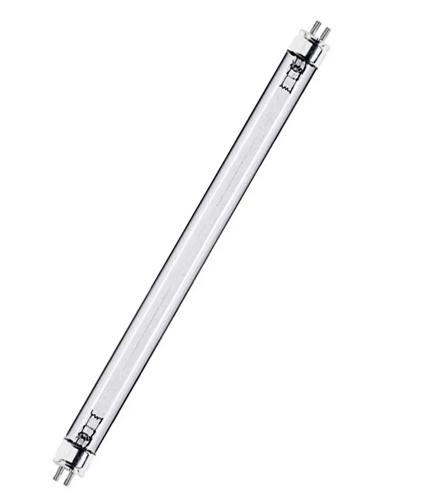

PURITEC® HNS® Linear Lamps

PURITEC® HNS® Linear Lamps

Product
Number

Product
Description

Wattage

Voltage

Nominal Current

Radiated Power 200-280nm UV-V

Base

23397G4T5/OF4290.170.8G5
23399G6T5/OF6420.161.7G5
21061G8T5/OF8560.152.0G5
23354HNS 11W G5 25X111330.412.5G5
21259G15T8/OF15550.304.9G13
55030G16T5L/4PSE16430.404.04 pin
55031G20T5L/4PSE20450.456.04 pin
55197G25T8/OF25460/696.9G13
21080G30T8/OF30960.3613.4G13
55032G36T5L/4PSE40970.4214.04 pin
21283G55T8/OF55830.7718.0G13

*Available Upon Special Request

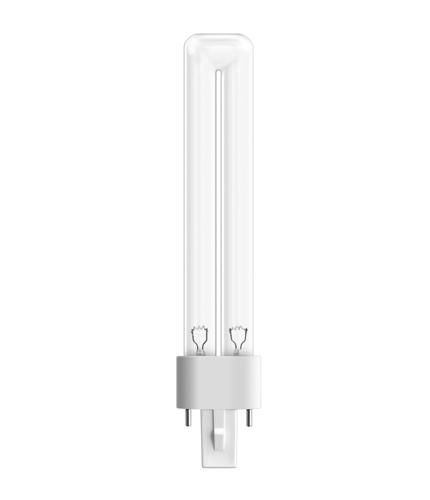

PURITEC® HNS® Compact S Lamps

PURITEC® HNS® Compact S Lamps

Product Number

Product Description

Wattage

Voltage

Nominal Current

Radiated Power

Base

23396GCF5DS/G23/SE/OF5350.181.0G23
20390GCF7DS/G23/SE/OF7460.181.9G23
21062GCF9DS/G23/SE/OF9600.172.5G23
23398GCF11DS/G23/SE/OF11910.163.6G23
PURITEC® HNS® Compact L Lamps

PURITEC® HNS® Compact L Lamps

Product Number

Product Description

Wattage

Voltage

Nominal Current

Radiated Power 200-280nm UV-C

Base

21054GFT18DL/2G11/SE/OF18560.385.52G11
20849GFT24DL/2G11/SE/OF24870.358.62G11
23392GFT36DL/2G11/SE/OF361060.44122G11
23401GFT55DL/2G11/SE/OF551010.55172G11
23402GFT60DL/2G11/SE/OF60820.80192G11
23403GFT95DL/2G11/SE/OF951150.80272G11

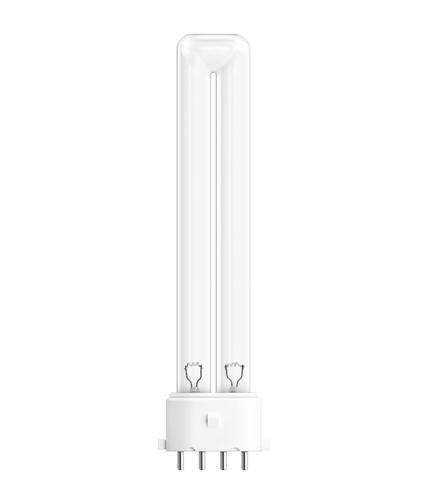

PURITEC® HNS® Compact S/E Lamps

PURITEC® HNS® Compact S/E Lamps

Product Number

Product Description

Wattage

Voltage

Nominal Current

Radiated Power 200-280nm UV-C

Base

N/A*HNS S/E 7W 2G77370.181.92G7
N/A*HNS S/E 9W 2G79480.172.52G7
N/A*HNS S/E 11W 2G711750.153.62G7

*Available Upon Special Request

​For Your Safety:

To prevent possible serious injury, eyes and skin should not be exposed to direct or reflected ultraviolet light emitted by this lamp. This lamp is in Risk Group 3 per ANSI/IESNARP-27.3-96. Adequate protection should be provided by clothing, gloves, opaque materials, and ordinary window glass. Although this lamp will operate in standard fluorescent fixtures, it should not be used for general lighting applications.​

Applications for PURITEC HNS UV-C Germicidal Lamps

Applications

Germicidal/Purification

  • Air
  • Water
  • Surface
