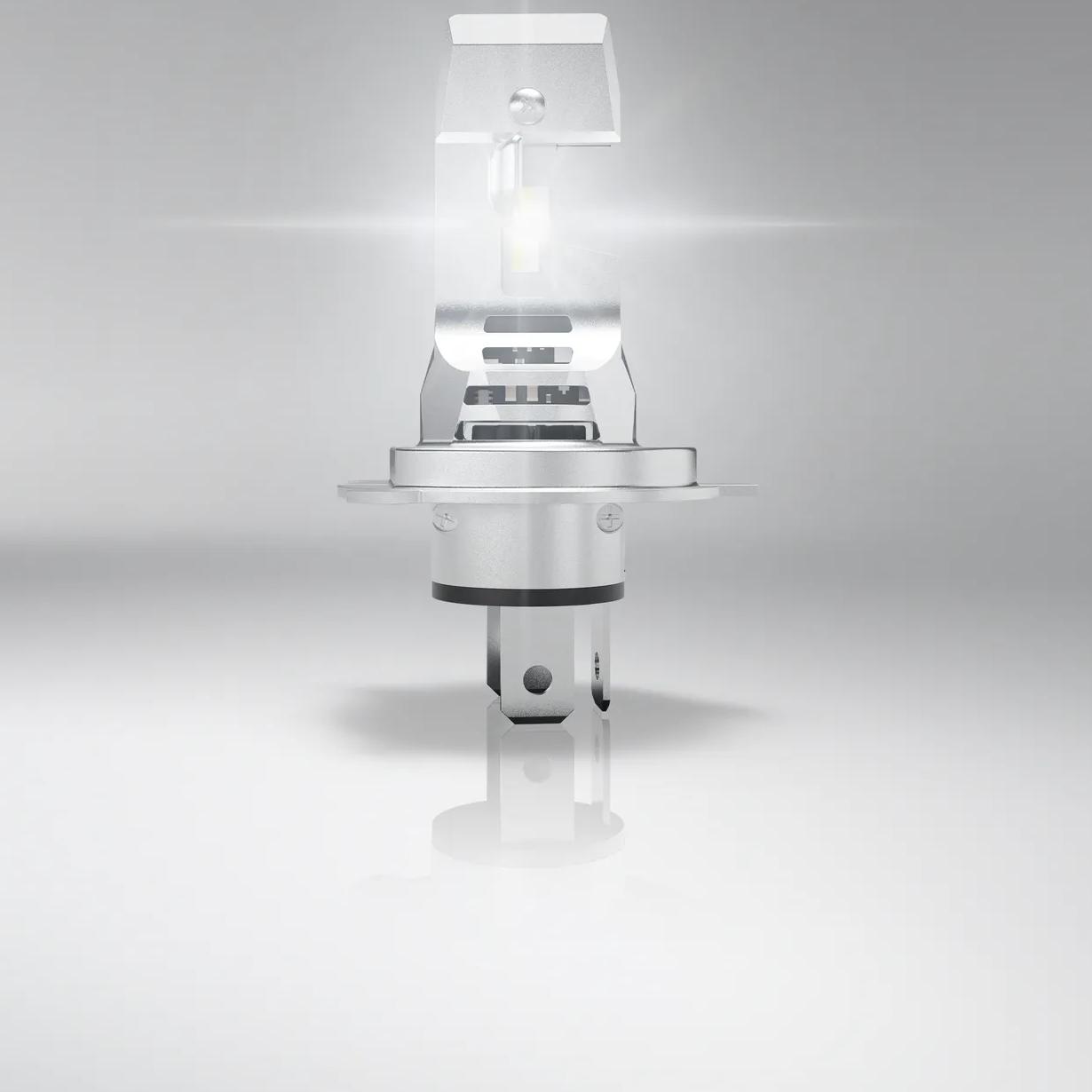

NIGHT BREAKER LED SPEED H4 450
OSRAM presents a revolutionary LED retrofit lamp innovation that combines street approval1), quick and easy installation, outstanding vision and visibility, a modern vehicle upgrade, safety and reliability and much more in one lamp.
For all those who want to see more. Innovative technology enables up to 450% more brightness2), contributing to significantly improved road illumination. With a light range of up to 240m in low beam application, the NIGHT BREAKER LED SPEED not only can improve the driver's vision and visibility but also can increase the safety of all other road users. The cool white light color of up to 6000K also gives the vehicle a contemporary, modern appearance. Halogen out – LED in. The plug-and-play solution ensures quick and easy installation and effortless conversion of the vehicle's high and low beam lamps to state-of-the-art LED technology, as the future-oriented design is 1:1 compatible and nearly identical with traditional halogen lamps. Technology that keeps glare under control. The entire NIGHT BRAKER LED range is also characterized by the fact that these lamps, even with this outstanding light performance, have a glare-free light beam. With OSRAM's glare-free lighting technology, the glare effect for oncoming traffic is reduced by up to 50%2) compared to the maximum values permitted by law. With a clear and sharp cut-off-line, it is the optimum choice for anyone who values safety and reliability on the road. Sustainable Illumination. Compared to traditional halogen lamps, the NIGHT BREAKER LED SPEED consumes up to 60% less energy, contributing to enhanced fuel efficiency. Its service life—up to six times longer—significantly reduces maintenance intervals and material consumption, resulting in lower waste generation. Supplied in plastic-free packaging, the product promotes resource conservation throughout its entire lifecycle. Engineered to endure. OSRAM products are innovative and technologically high-quality products that are carefully tested and subject to the strict monitoring undertaken by the OSRAM quality assurance system. Therefore, OSRAM offers a 5+1-year guarantee on all NIGHT BREAKER LED SPEED retrofit lamps3).
NIGHT BREAKER LED SPEED H4 450
Street-Legal1)
The NIGHT BREAKER LED family - OSRAM's first street-legal1) LED retrofit lampsUp to 450% more brightness2)
Significantly improved road illumination. Beam range of up to 240 m in low beam application. Improved vision and visibility, and hence safety1:1 Design
Future-oriented design. 1:1 compatible and nearly identical with traditional halogen lamps for a quick and easy plug & play installationUp to 6 times longer lifetime3)
Vibration resistant, environmentally friendly, and cost-efficientTechnical Data
Product information
Product legal advice 1
1) Approved LED light source - only applies to the respective countries in which there is approval or to which an equivalent approval applies and the vehicle models and light functions currently listed in the compatibility list. For more details see www.osram.com/nb-led
Product legal advice 2
2) Compared to the minimum requirements of ECE R112, while the glare is below the maximum permissible values by up to 50%
Product legal advice 3
3) In comparison to traditional Halogen lamps
Product legal advice 4
4) For precise conditions please refer to: www.osram.com/am-guarantee
Electrical Data
Nominal wattage
14 W
Power input
14 W
Test voltage
13.2 V
Power input tolerance
±20 %
Nominal voltage
12 V
System wattage
14 W
Photometric Data
Light color LED
Cool white
Color temperature
6000 K
Luminous flux tolerance
±15 %
Nominal luminous flux
1000/1600 lm
Physical Attributes & Dimensions
Length
79.0 mm
Lifetime Data
Lifespan Tc
3000 hr
Lifespan B3
1500 hr
Capabilities
Technology
LED
Certificates & standards
Standards
ABG
Environmental & Regulatory Information
Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)
Primary article identifier
4062172422413
Declaration no. in SCIP database
In work
Packaging information
EAN |
Unit |
Piece |
Dimension l x w x h |
Weight |
Volume |
|---|---|---|---|---|---|
| 4062172422413 |
HFB
| 1 | 90mm x 51mm x 120mm | 71.00g | 0.55dm³ |
| 4062172422420 |
VS
| 4 | 216mm x 101mm x 134mm | 348.00g | 2.92dm³ |
